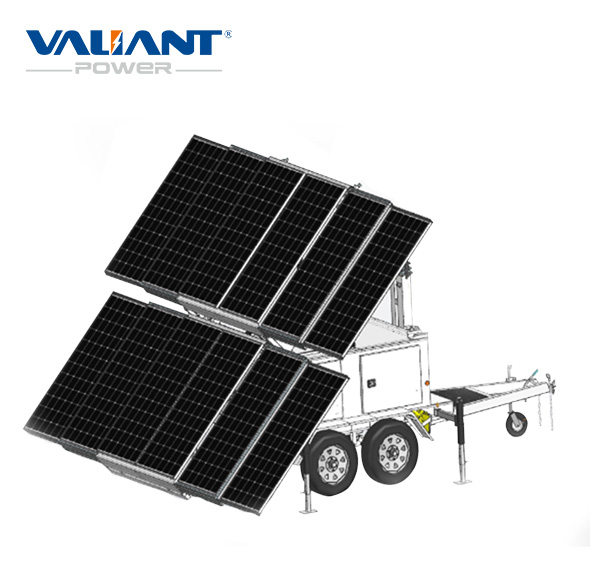

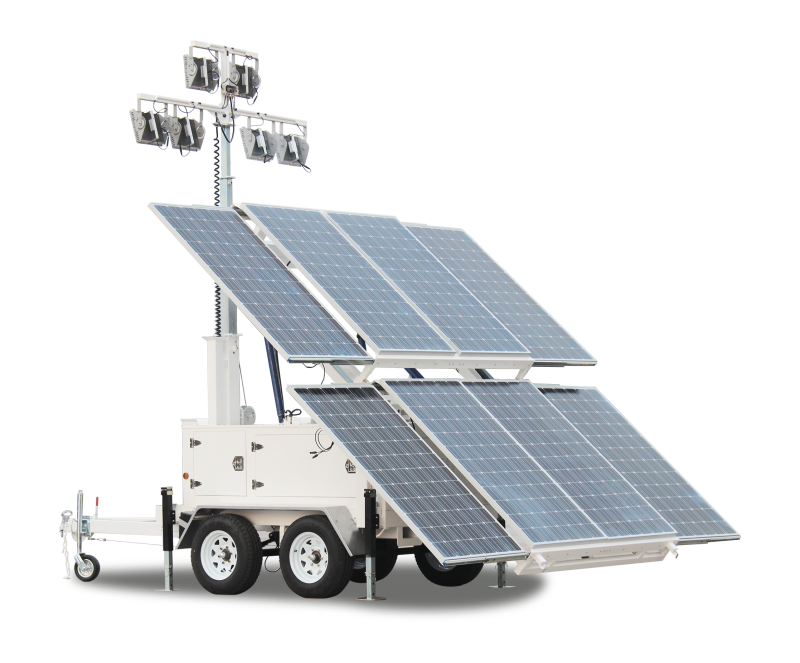

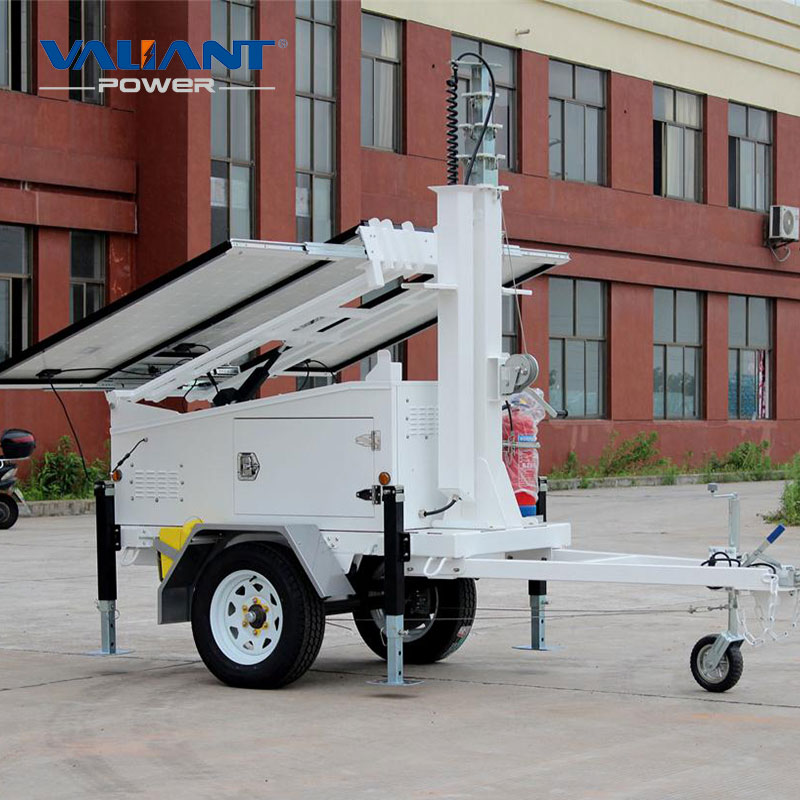

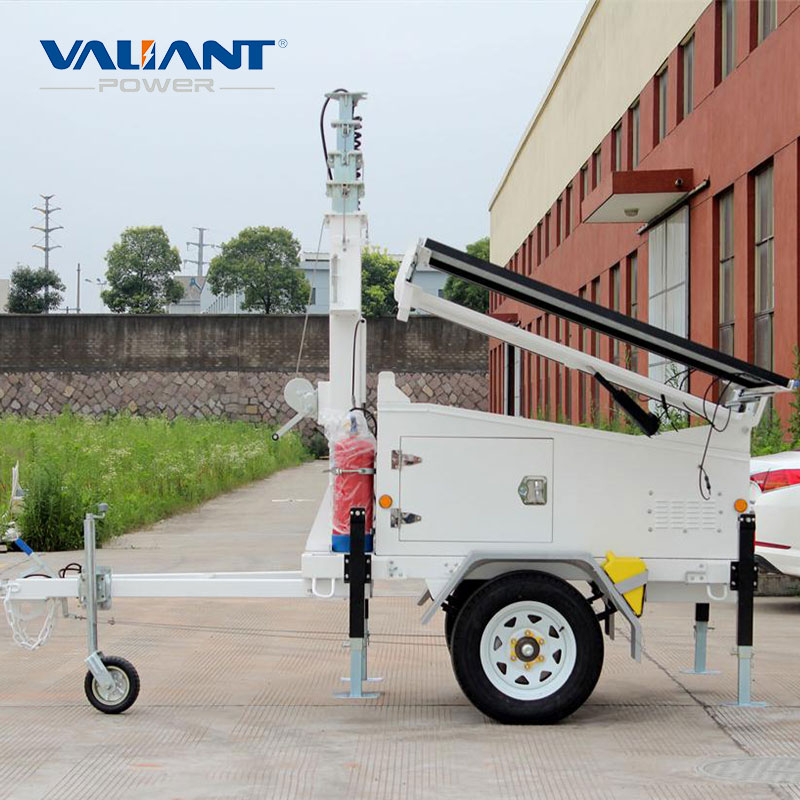

DC24/48V Wind Solar Generator Trailer System

Product Description

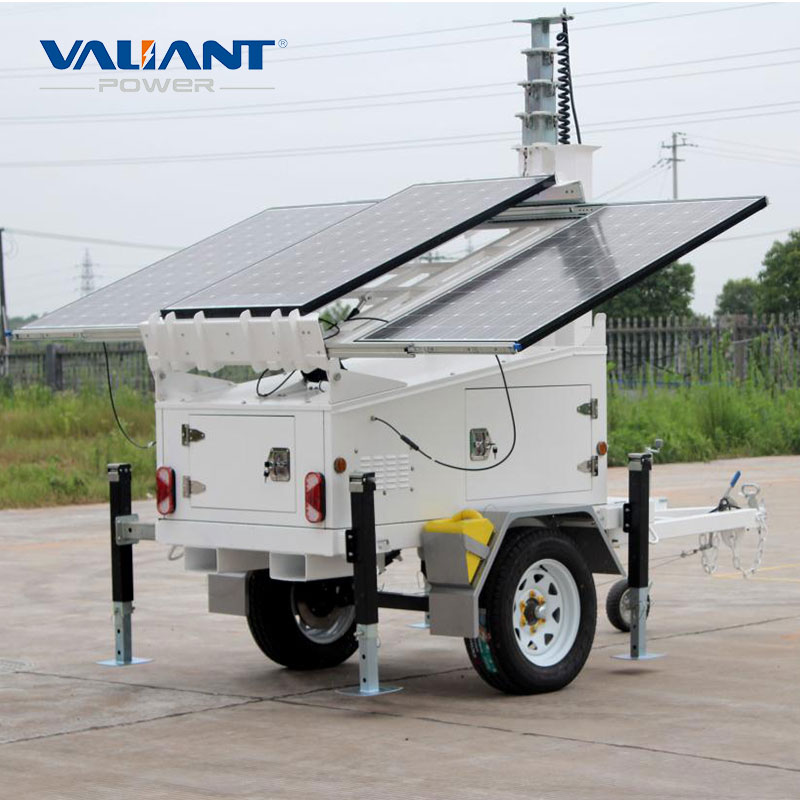

DC24V wind solar generator trailer system

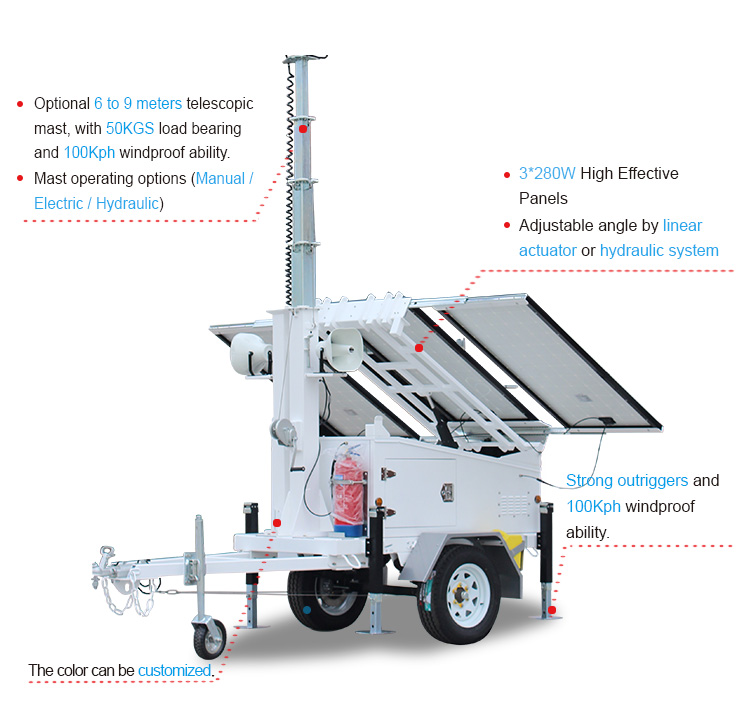

VTS600A Details
DC24/48V Wind Solar Generator Trailer System
  • Product Feature:
  • 3*280W solar panels
  • 4*150Ah / 4*200Ah gel batteries, DC24V system
  • Optional 6 to 9 meters manual/electric/hydraulic mast
  • Single axle trailer with Australia / Europe / North America standard
  • Widely used in CCTV security, communication, lighting etc
Tower Dimensions:
Length: 3600mm
Width: 1470mm
Height: 2450mm
Weight: 1050kg
Trailer Details:
Trailer Type: Single Axle
Tire and Rim Size: 15''
Stabilizer Supports: 4*manual
Drawbar: A Frame
Tow Hitch: 50mm Ball/70mm Ring
Mud Guard / Wheel Chock: Special Design
Working Temperature(℃): -35~60
Mast Details:
Mast Raise / Extension: Manual / Electric / Hydraulic
Safety: Auto Lock / Sensor / Safety Valve
Mast Height(m): Optional
Mast 360 Degrees: Optional
Coil Cable: Optional
Wind Rating Speed: 100km/h
DC24/48V Wind Solar Generator Trailer System
DC24/48V Wind Solar Generator Trailer System
DC24/48V Wind Solar Generator Trailer System
DC24/48V Wind Solar Generator Trailer System
Model List of wind solar generator
Model Solar Panel Panel Spec Battery Mast Trailer
VTS600A Optional 3 × 280W 4×150AH/4×200AH 6/7.5/9M Single axle
VTS650A Optional 2 × 335W 4×150AH/4×200AH 6/7.5/9M Single axle
VTS900A Optional 3 × 335W 4×200AH/6×150AH/6×200AH 6/7.5/9M Single axle
VTS900B Optional 3 × 335W 4×200AH/6×150AH/8×150AH 6/7.5/9M Single axle
VTS1200A Optional 4 × 335W 4×200AH/6×150AH/8×150AH 6/7.5/9M Single axle
VTS1200B Optional 4 × 335W 6×150AH/8×150AH/8×200AH 6/7.5/9M Dual axle
VTS1200C Optional 4 × 335W 4×200AH/6×150AH/8×150AH 6/7.5/9M Single axle
VTS1200D Optional 4 × 335W 6X150AH/8x150AH/8x200AH 6/7.5/9M Dual axle
VTS1200E Optional 4 × 335W 6×150AH/8×150AH/8x200AH 18M Dual axle
VTS2400A Optional 8 × 335W 12X150AH/16×150AH 6/7.5/9M Dual axle
VTS2400B Optional 8 x 335W 12×150AH/16×150AH 6/7.5/9M Dual axle
wind solar generator Introduction
VTS600A
VTS600A Details
VTS900A

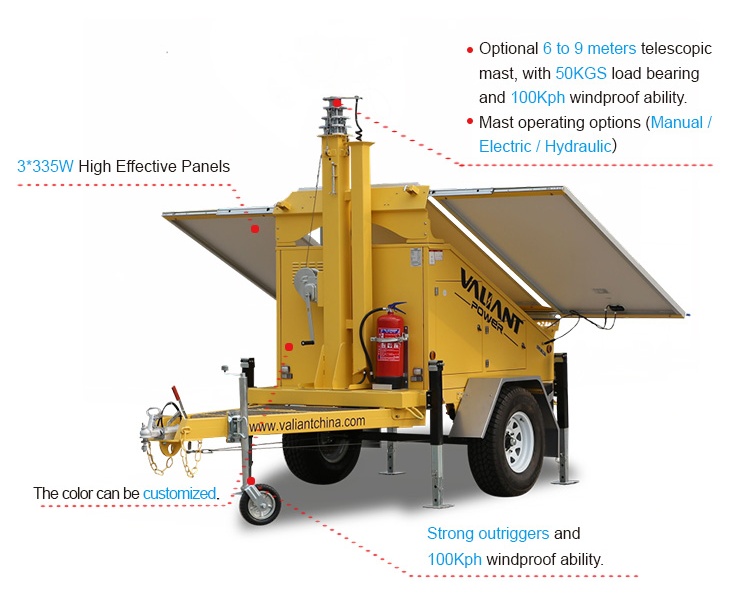

VTS900A Details
VTS900B

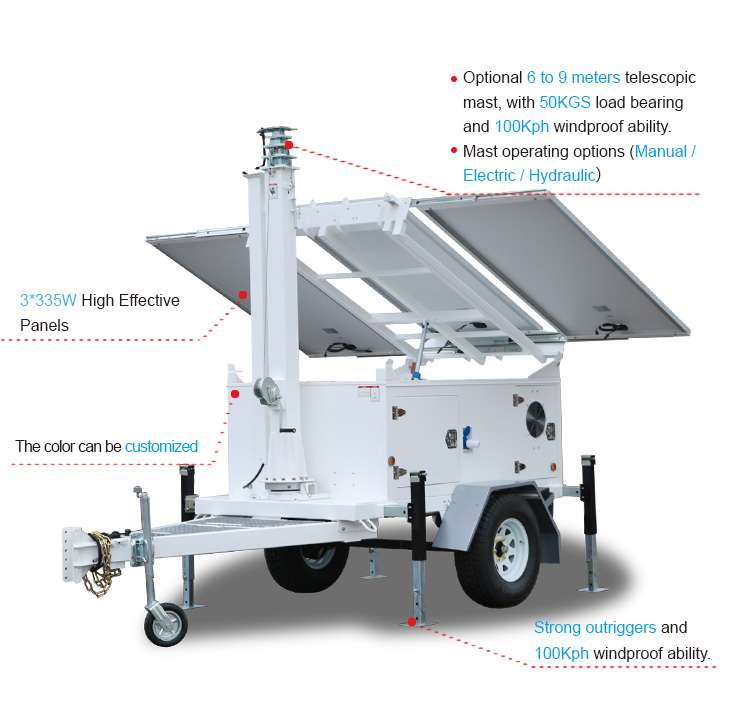

VTS900B Details

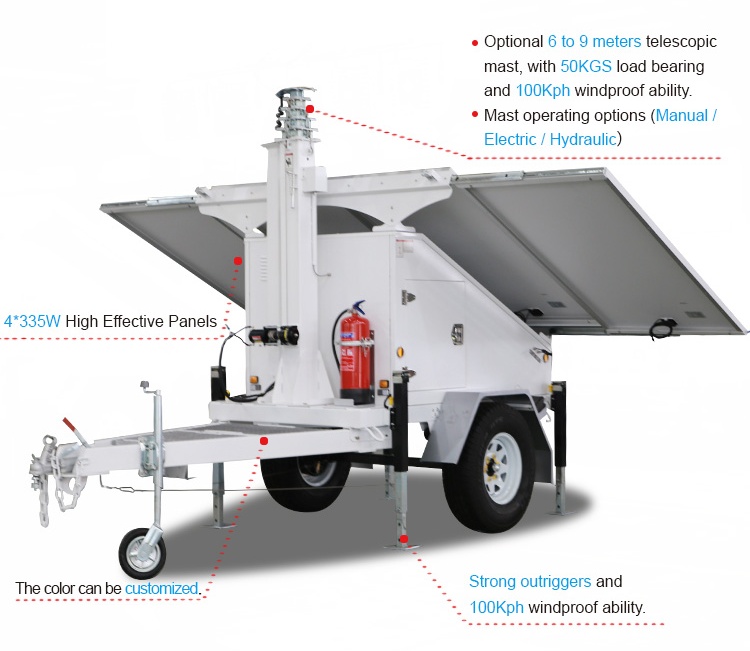

VTS1200A
VTS1200A Details

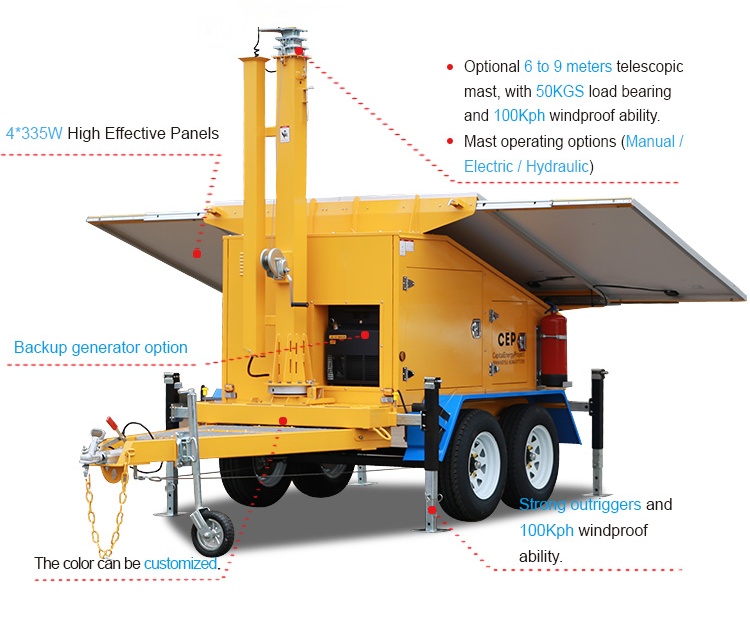

VTS1200B
VTS1200B Details

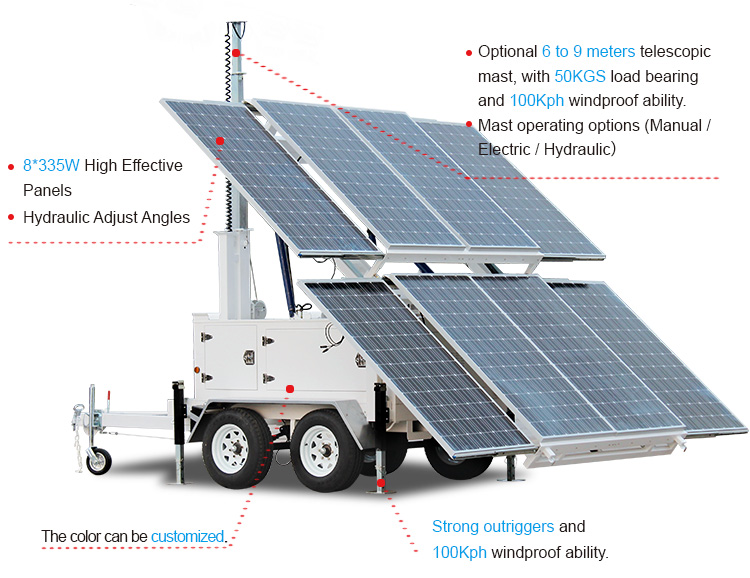

VTS2400A
VTS2400A Details

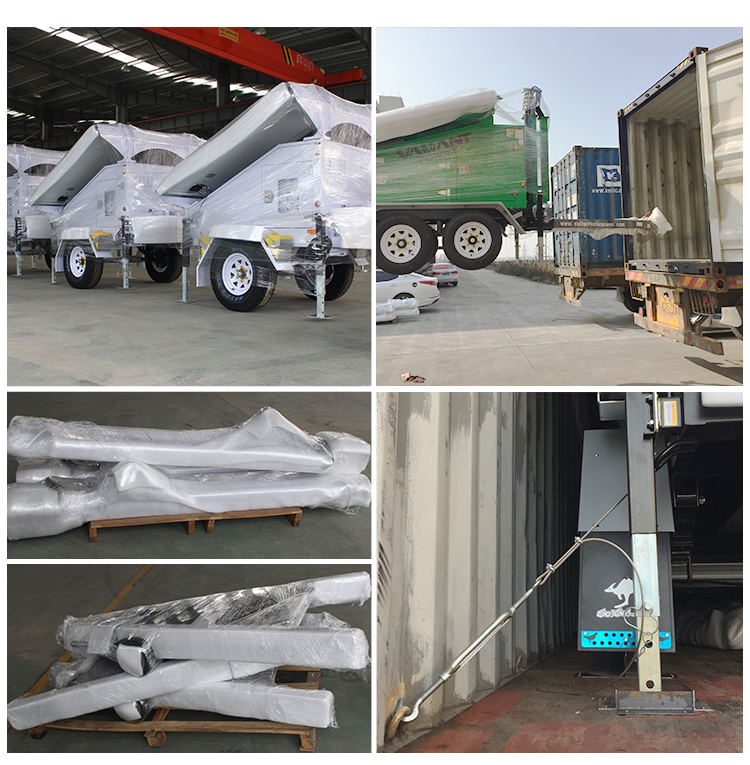

Packaging & Shipping Of wind solar generator
Packaging & Shipping

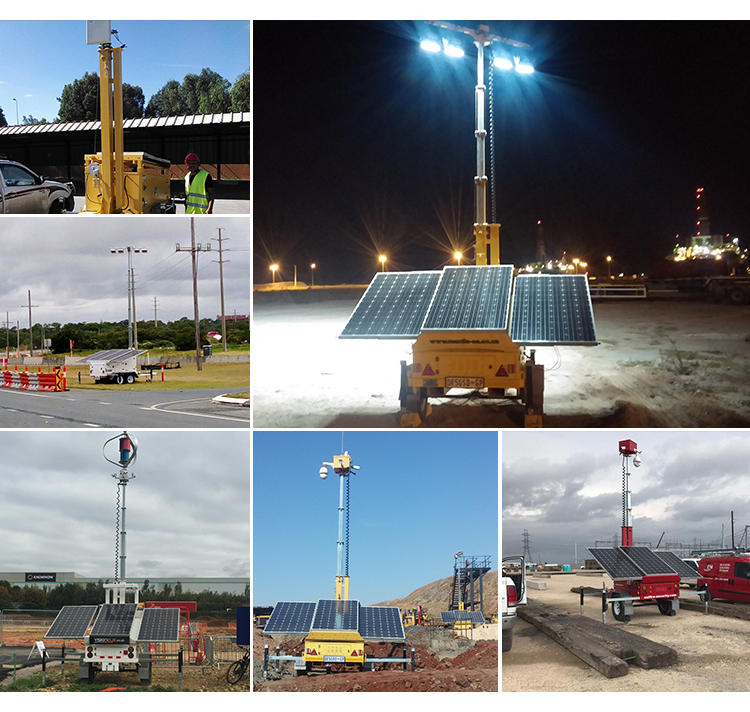

Product Application
Product Application

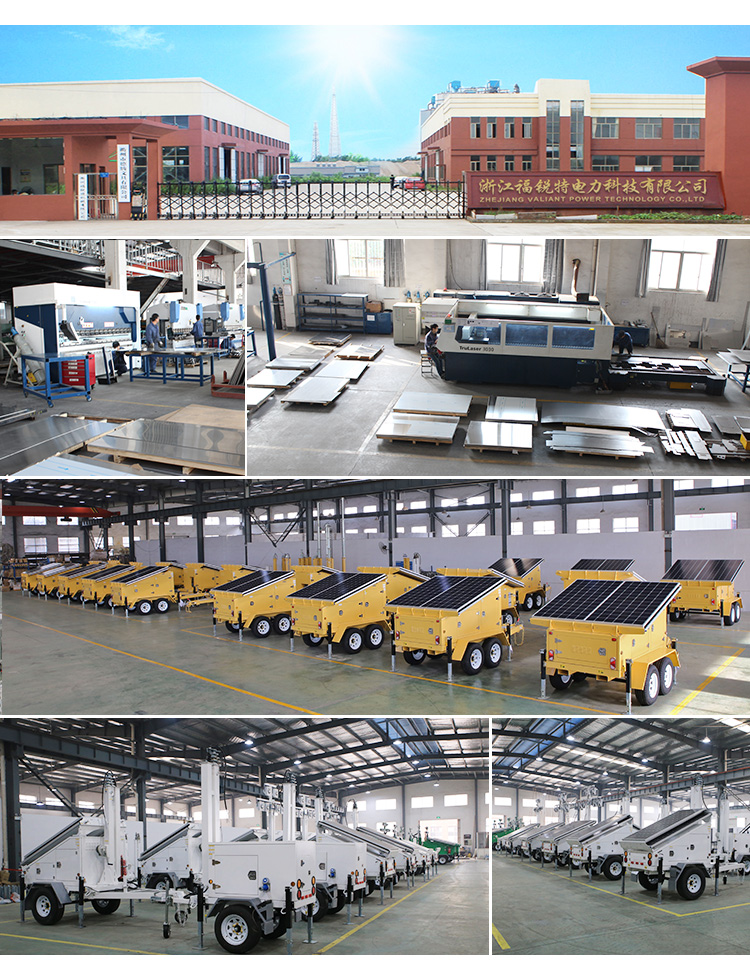

Manufacturing Facility
Manufacturing Facility

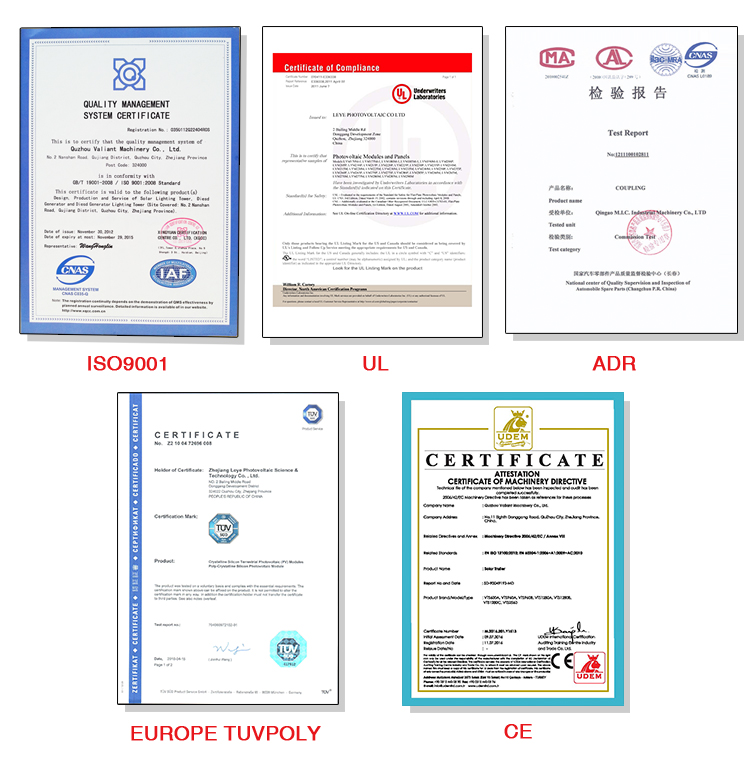

Certification
Certification
FAQ
What certificate do you have for the wind solar generator?
CE certificate for the whole machine. The major parts like LED lamp, batteries and solar panels have CE and UL certificate.
How many countries have the wind solar generator been exported to?
Australia, Canada, USA, Mexico, UK, Denmark, New Zealand, India, Brazil, Chile, South Korea, Indonesia, the Philippines, UAE, Saudi Arabia, Ghana, South Africa, Cameroon, Sudan, Egypt, Israel, etc.
How to become our agent?
As long as you have the marketing resources and the capacity to do after-sale service, contact us for further details by sending us an inquiry.
What is the rated wind speed limit for this trailer system?
The system features a robust wind rating speed of 100km/h to ensure stable operation under challenging weather conditions.
What mast specifications and options are available?
We offer optional mast heights ranging from 6 to 9 meters. The raise and extension mechanism can be chosen from manual, electric, or hydraulic systems based on your needs.
What are the main applications of the wind solar generator trailer?
The trailer system is widely used for off-grid power solutions including CCTV security, telecommunication systems, and outdoor temporary lighting.
