Portable Light Tower Wind Generator Solar Hybrid System
Portable Light Tower Wind Generator Solar Hybrid System
Portable Light Tower Wind Generator Solar Hybrid System
Portable Light Tower Wind Generator Solar Hybrid System
Portable Light Tower Wind Generator Solar Hybrid System
1 / 5
Portable Light Tower Wind Generator Solar Hybrid System
Portable Light Tower Wind Generator Solar Hybrid System
Portable Light Tower Wind Generator Solar Hybrid System
Portable Light Tower Wind Generator Solar Hybrid System
Portable Light Tower Wind Generator Solar Hybrid System

Portable Light Tower Wind Generator Solar Hybrid System

Send Inquiry

Product Description

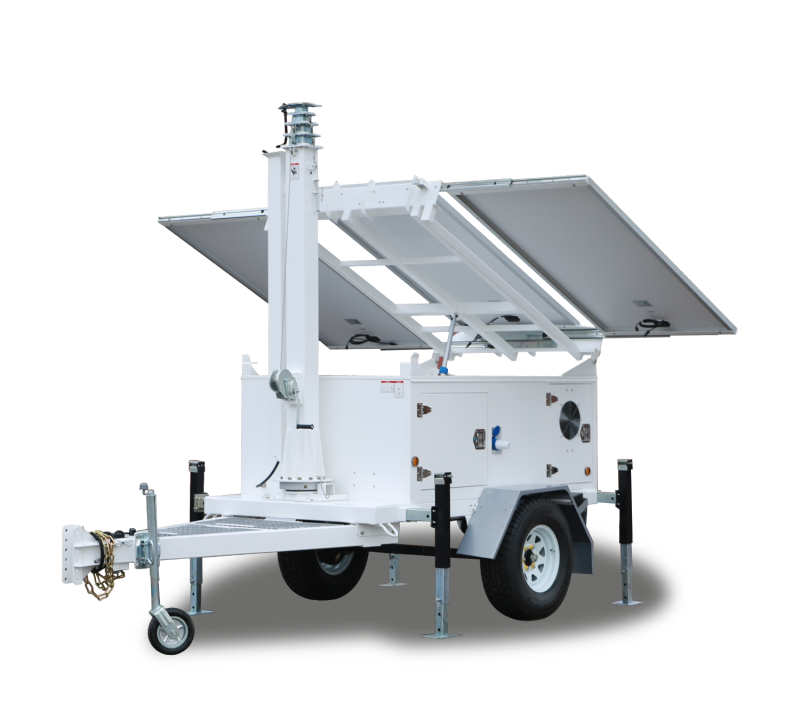

Portable Light Tower Wind Generator Solar Hybrid System
VTS900B Details
Portable Light Tower Wind Generator Solar Hybrid System
Key Features
  • 3*335W high efficiency solar panels
  • 4*200Ah / 6*150Ah / 8*150Ah gel batteries, DC24V/DC48V system configurations
  • Optional 6 to 9 meters manual, electric, or hydraulic mast extension
  • Single axle heavy-duty trailer built to Australia and North America standards
  • Widely used across CCTV security, communication, remote lighting, and industrial applications
Tower Dimensions
Length: 4100mm
Width: 1880mm
Height: 2520mm
Weight: 1380kg
Mast Details
Raise / Extension: Manual / Electric / Hydraulic
Safety Protocols: Auto Lock / Sensor / Safety Valve
Mast Height: Optional Selection
360 Degrees Rotation: Optional
Coil Cable: Optional
Wind Rating Speed: 100km/h
Trailer & Support
Trailer Type: Single Axle
Tire and Rim Size: 15''
Stabilizer Supports: 4 * manual
Drawbar Structure: A Frame
Tow Hitch Spec: 50mm Ball / 70mm Ring
Mud Guard / Chock: Special Design
Backup Generator: Optional
Working Temp: -35℃ ~ 60℃
Detail View 1 of Portable Light Tower

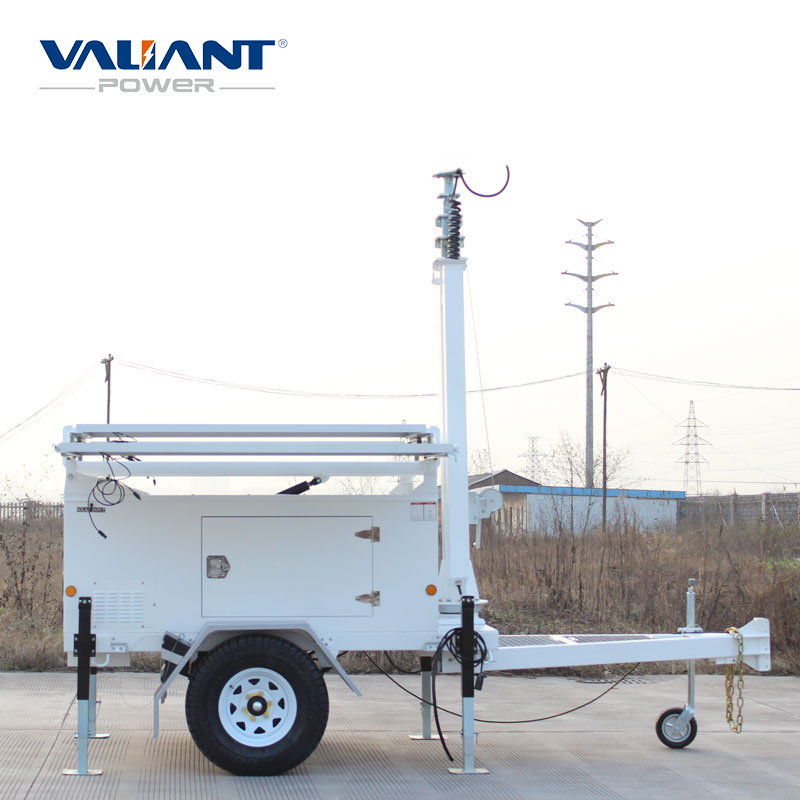

Detail View 2 of Portable Light Tower
Detail View 3 of Portable Light Tower
Detail View 4 of Portable Light Tower
Model List of Mobile Solar Trailer
Model Solar Panel Type Configuration Battery Spec Mast Height Trailer Type
VTS600A Optional 3 × 280W 4×150AH / 4×200AH 6/7.5/9M Single axle
VTS650A Optional 2 × 335W 4×150AH / 4×200AH 6/7.5/9M Single axle
VTS900A Optional 3 × 335W 4×200AH / 6×150AH / 6×200AH 6/7.5/9M Single axle
VTS900B Optional 3 × 335W 4×200AH / 6×150AH / 8×150AH 6/7.5/9M Single axle
VTS1200A Optional 4 × 335W 4×200AH / 6×150AH / 8×150AH 6/7.5/9M Single axle
VTS1200B Optional 4 × 335W 6×150AH / 8×150AH / 8×200AH 6/7.5/9M Dual axle
VTS1200C Optional 4 × 335W 4×200AH / 6×150AH / 8×150AH 6/7.5/9M Single axle
VTS1200D Optional 4 × 335W 6X150AH / 8x150AH / 8x200AH 6/7.5/9M Dual axle
VTS1200E Optional 4 × 335W 6×150AH / 8×150AH / 8x200AH 18M Dual axle
VTS2400A Optional 8 × 335W 12X150AH / 16×150AH 6/7.5/9M Dual axle
VTS2400B Optional 8 x 335W 12×150AH / 16×150AH 6/7.5/9M Dual axle
Mobile Solar Trailer Introduction

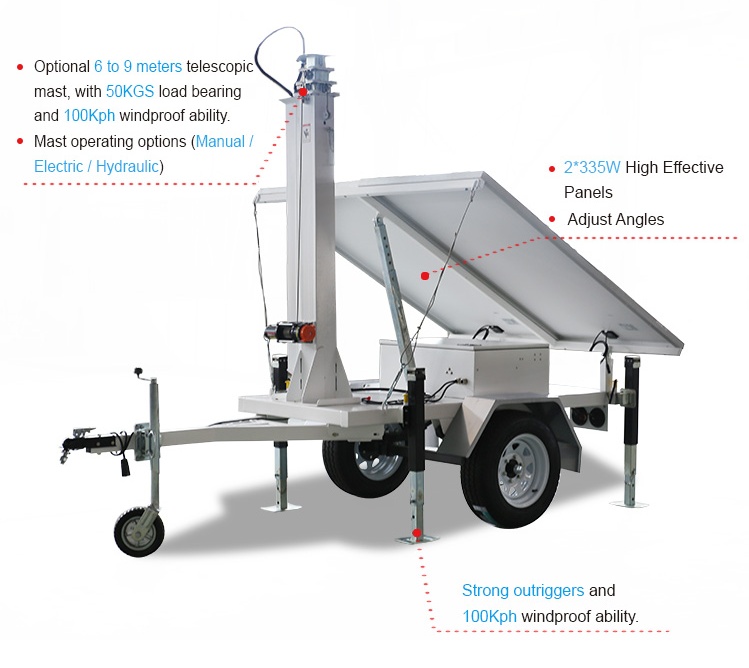

VTS650A Mobile Solar Trailer
VTS650A
VTS900A Mobile Solar Trailer
VTS900A
VTS900B Mobile Solar Trailer
VTS900B
VTS1200A Mobile Solar Trailer
VTS1200A
VTS1200B Mobile Solar Trailer
VTS1200B
VTS2400A Mobile Solar Trailer
VTS2400A
Packaging & Shipping
Packaging & Shipping of Wind Generator Solar Hybrid System
Product Application
Product Application Scenarios
Our Facilities
Production Workshop
Certifications
Product Qualifications and Certificates
Frequently Asked Questions
QuestionWhat certificate do you have for the wind generator solar hybrid system?
We hold a CE certificate for the entire machine. Key components, including the LED lamps, batteries, and solar panels, are certified under CE and UL standards.
QuestionHow many countries has the wind generator solar hybrid system been exported to?
Our hybrid systems have been successfully exported to Australia, Canada, USA, Mexico, UK, Denmark, New Zealand, India, Brazil, Chile, South Korea, Indonesia, the Philippines, UAE, Saudi Arabia, Ghana, South Africa, Cameroon, Sudan, Egypt, Israel, and other regions.
QuestionHow do we apply to become a local agent?
If you possess local marketing resources and the capacity to provide reliable after-sales service, please contact us for more information by submitting an inquiry.
QuestionWhat is the maximum wind speed rating that the system can withstand?
The system design is structurally optimized and built to handle a maximum wind speed rating of 100km/h for stable operations in high-wind zones.
QuestionWhat are the working temperature tolerances for the hybrid system?
The system is engineered to function reliably in harsh outdoor climates, supporting a wide operating temperature range from -35°C to 60°C.
QuestionWhat types of mast raises are available for the light towers?
We offer manual, electric, and hydraulic options for the mast raise and extension, with heights ranging between 6 to 9 meters depending on your project needs.
