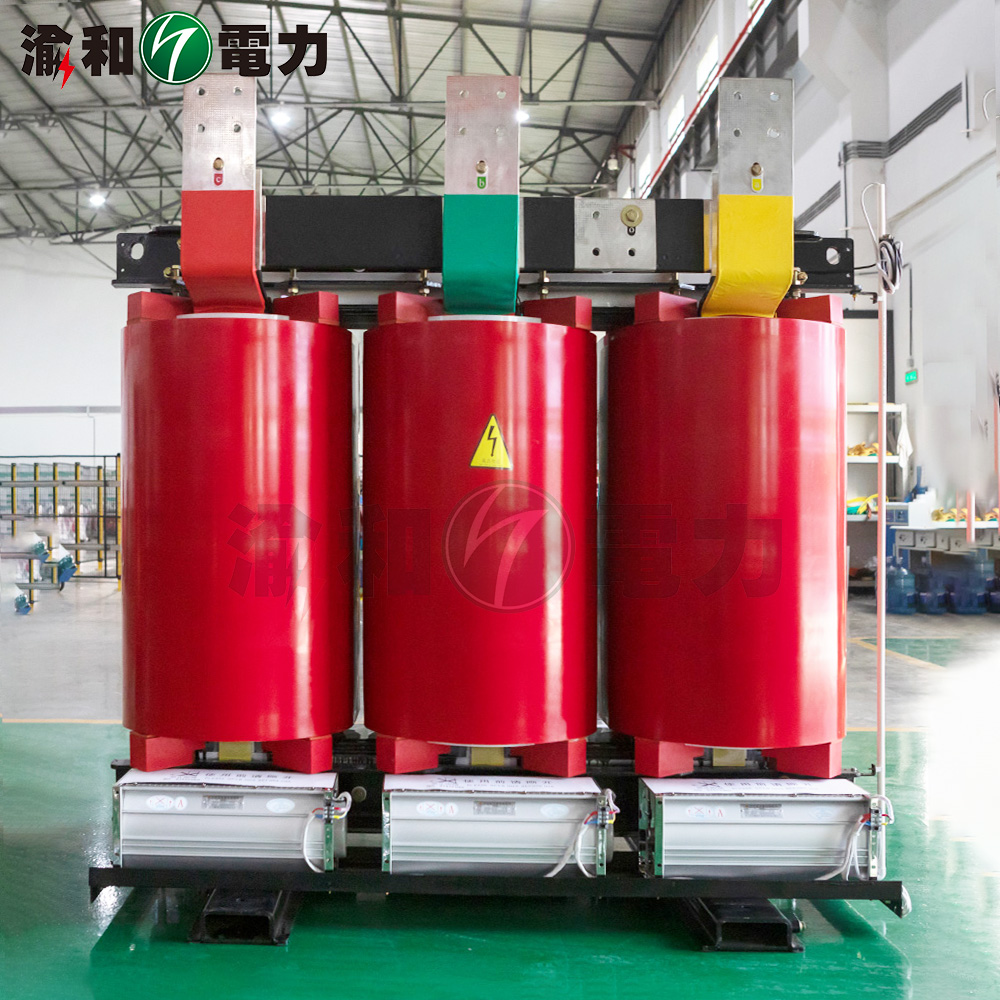

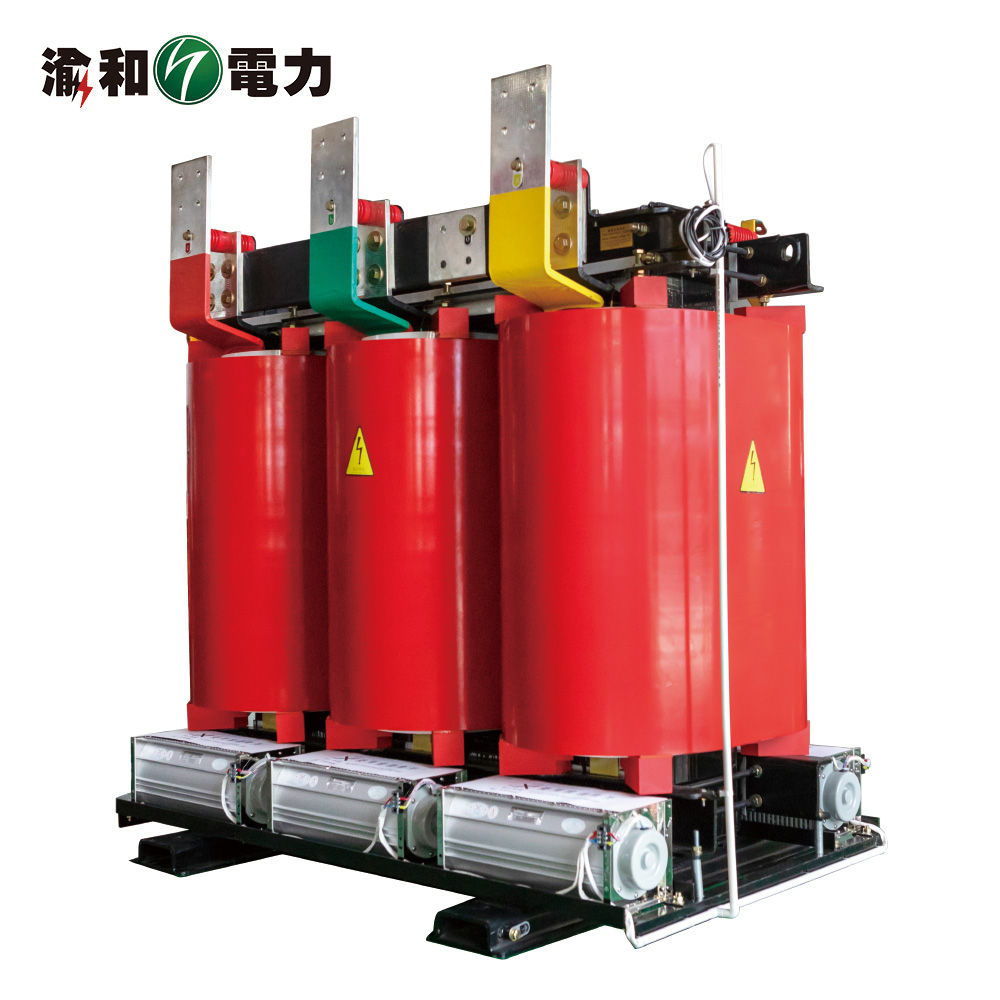

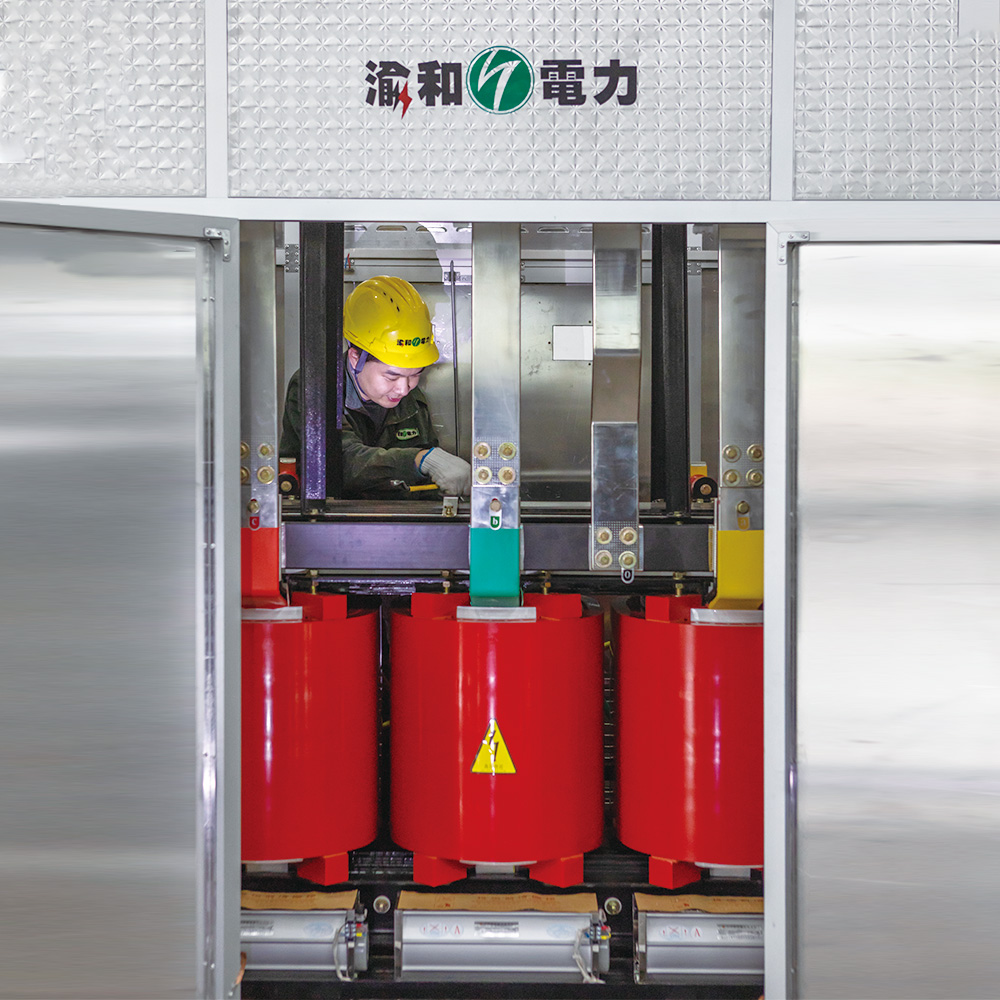

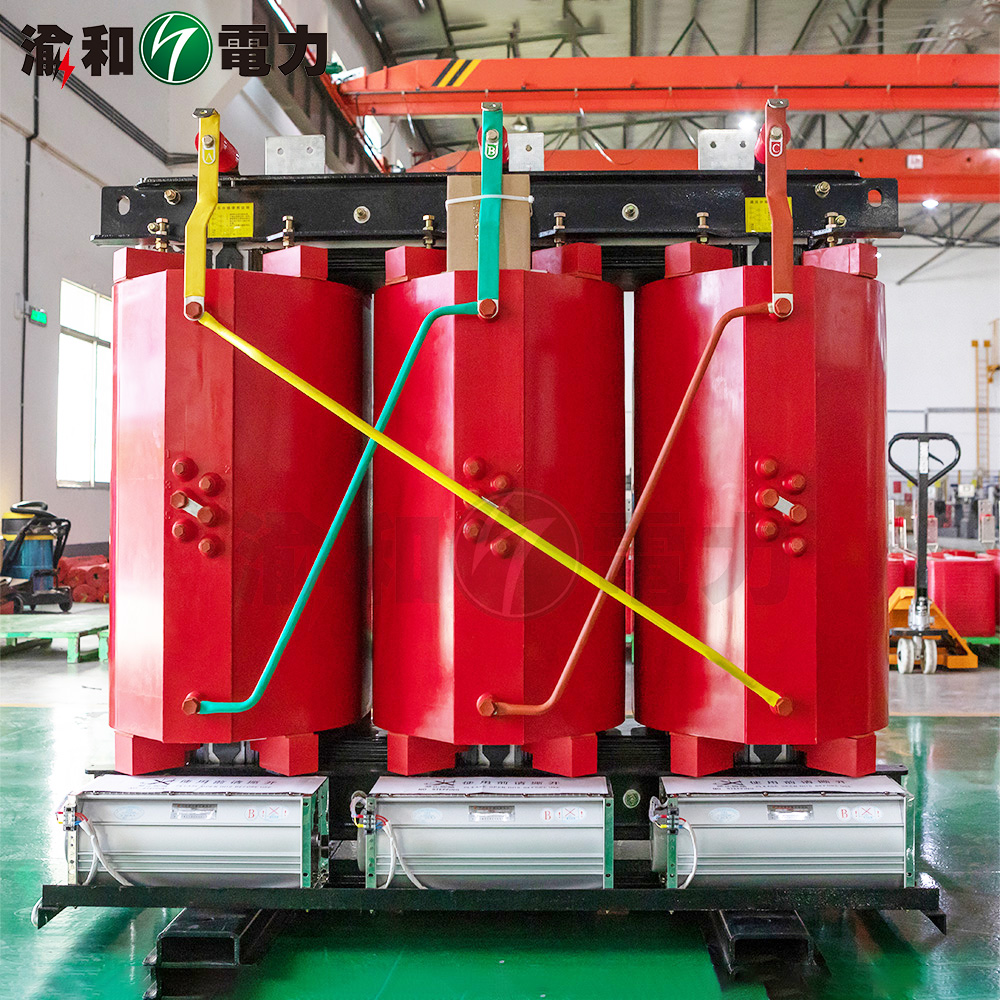

H Class Hotels Industry Used Step up Wind Turbine Aluminum Foil Data Center Power Transmission Commercial Dry Transformer
H Class Hotels Industry Used Step up Wind Turbine Aluminum Foil Data Center Power Transmission Commercial Dry Transformer
H Class Hotels Industry Used Step up Wind Turbine Aluminum Foil Data Center Power Transmission Commercial Dry Transformer
H Class Hotels Industry Used Step up Wind Turbine Aluminum Foil Data Center Power Transmission Commercial Dry Transformer
H Class Hotels Industry Used Step up Wind Turbine Aluminum Foil Data Center Power Transmission Commercial Dry Transformer
1 / 5
H Class Hotels Industry Used Step up Wind Turbine Aluminum Foil Data Center Power Transmission Commercial Dry Transformer
H Class Hotels Industry Used Step up Wind Turbine Aluminum Foil Data Center Power Transmission Commercial Dry Transformer
H Class Hotels Industry Used Step up Wind Turbine Aluminum Foil Data Center Power Transmission Commercial Dry Transformer
H Class Hotels Industry Used Step up Wind Turbine Aluminum Foil Data Center Power Transmission Commercial Dry Transformer
H Class Hotels Industry Used Step up Wind Turbine Aluminum Foil Data Center Power Transmission Commercial Dry Transformer

H Class Hotels Industry Used Step up Wind Turbine Aluminum Foil Data Center Power Transmission Commercial Dry Transformer

Send Inquiry

Product Description

Electric Power Equipment Banner
Product Specification Banner

Who We Are

Company Introduction

Established in 2011, we are a comprehensive enterprise integrating research and development, manufacturing, sales, and services of electric power equipment. Our main product catalog features a wide spectrum of power solutions designed to meet rigorous industrial demands.

We mainly produce SCB12, SCB13, SCB14, and SCB18 series of epoxy resin cast dry-type transformers with voltage ratings of 10KV, 20KV, and 35KV. Additionally, we manufacture S13, S20, and S22 series of oil-immersed power transformers, along with SCBH15(17/19) and S(B)H15(21/25)-M series of amorphous alloy transformers.

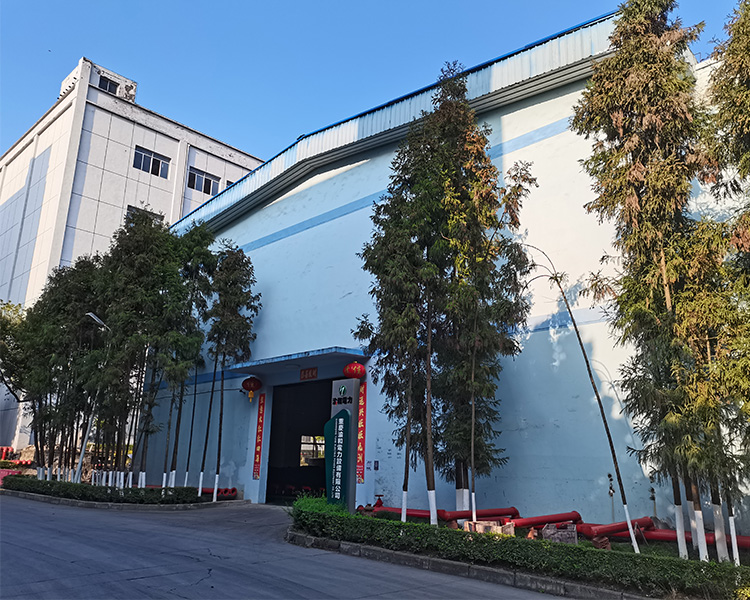

Manufacturing Facility
Transformer Component 1

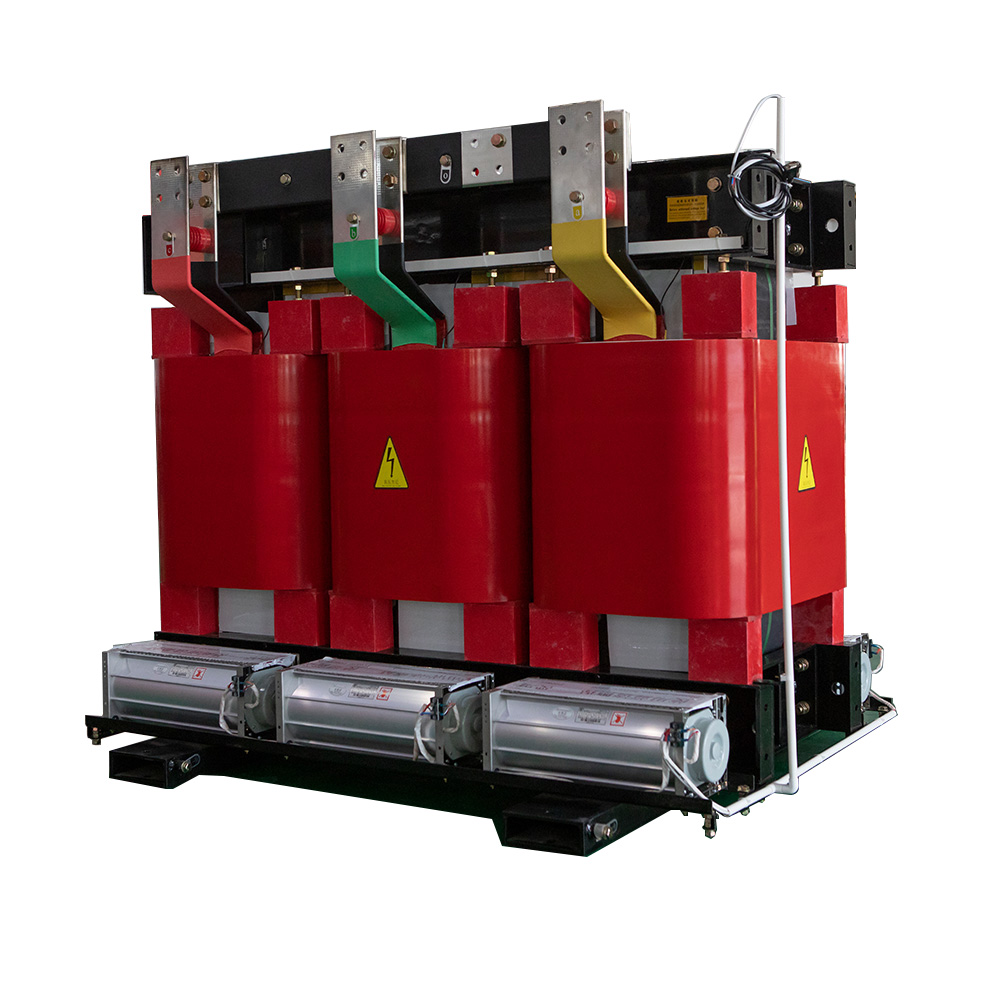

Transformer Component 2

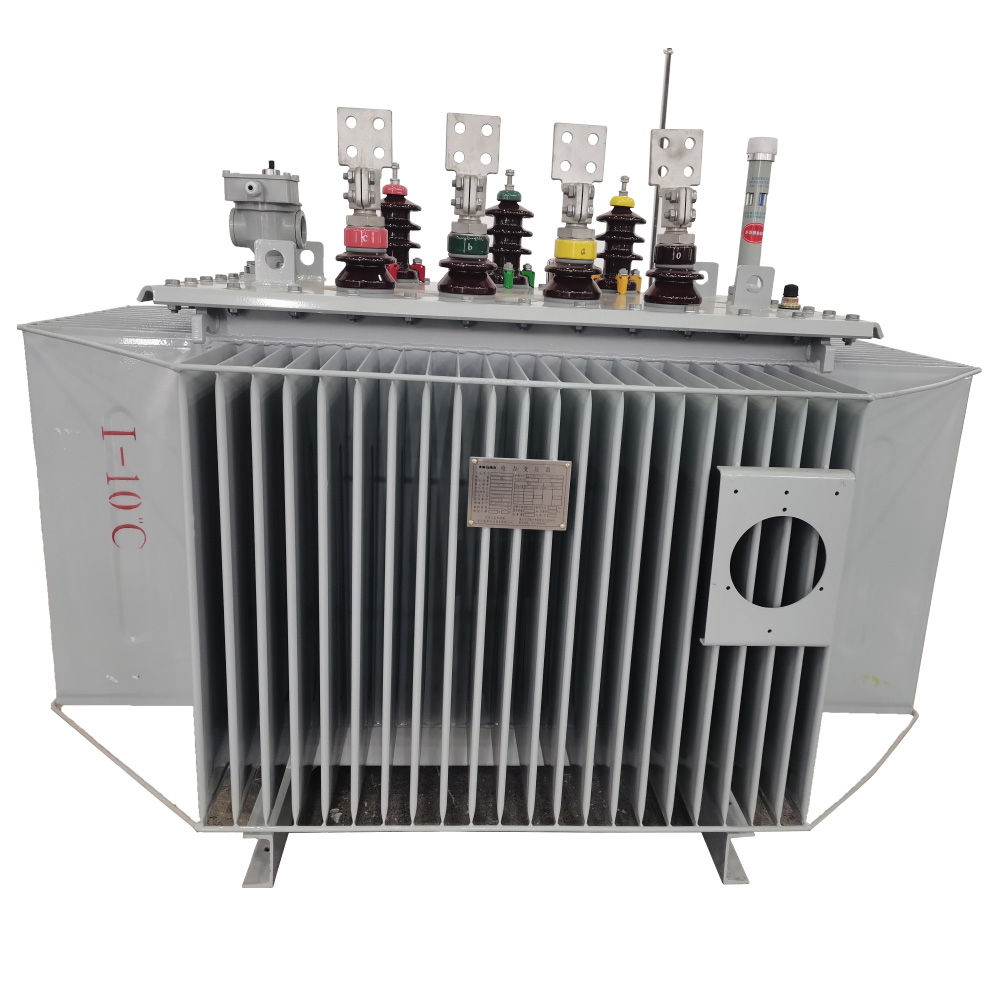

Transformer Component 3
Transformer Component 4

Specifications

Product Description

Rated Capacity
(kVA)		 Voltage Combination (kV) Connection Group Symbol No-load Loss
(W)		 Load Loss Under Different Insulation Heat-Resisting Rank (W) No-load Current
%
H.V. High Voltage Tapping % L.V. 130℃ (B)
(100℃)		 155℃ (F)
(120℃)		 180℃ (H)
(145℃)
30 6
6.3
6.6
10
10.5
11		 ±5
±2 x 2.5		 0.4 Yyno
Dyn11		 70 670 710 760 4.0
50 90 940 1000 1070
80 120 1290 1380 1480
100 130 1480 1570 1690
125 150 1740 1850 1980
160 170 2000 2130 2280
200 200 2370 2530 2710
250 230 2590 2760 2960
315 280 3270 3470 3730
400 310 3750 3990 4280
500 360 4590 4880 5230
630 420 5530 5880 6290
630 410 5610 5960 6400 6.0
800 480 6550 6960 7460
1000 550 7650 8130 8760
1250 650 9100 9690 10370
1600 760 11050 11730 12580
2000 1000 13600 14450 15560
2500 1200 16150 17170 18450

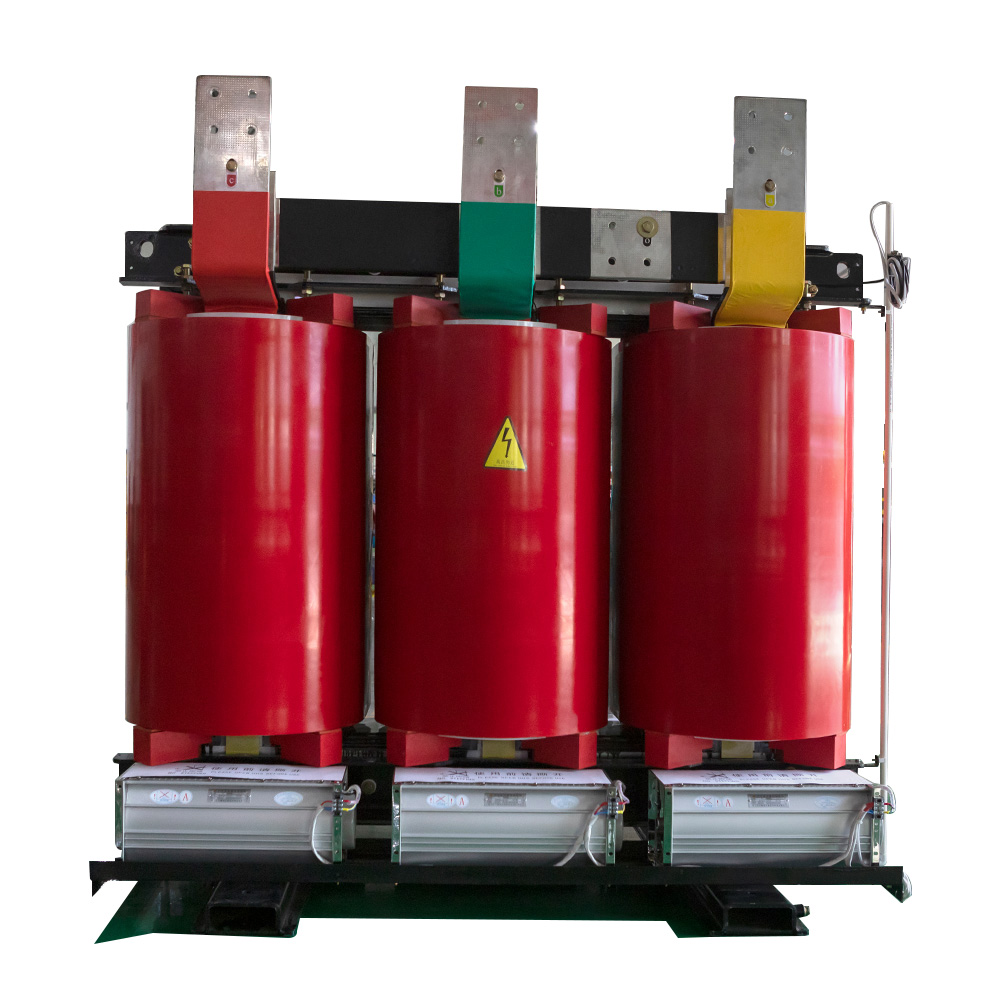

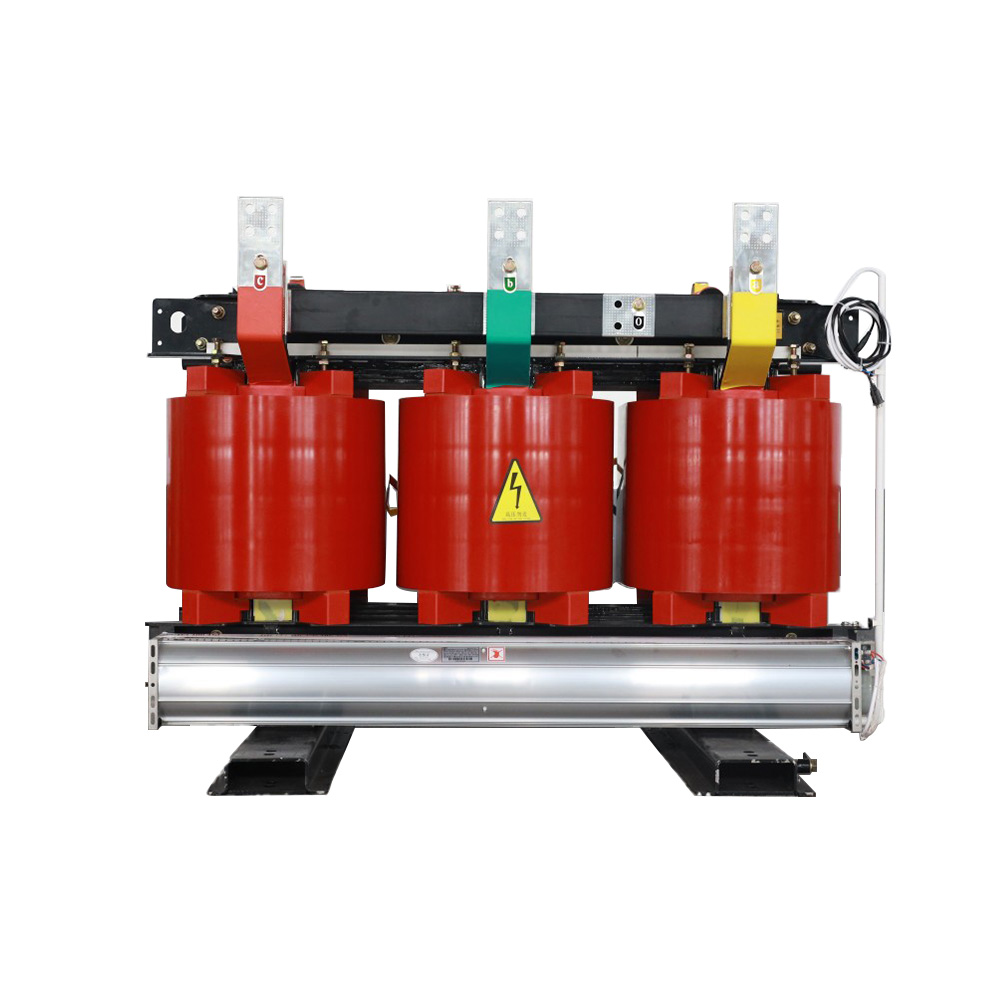

Cast Resin Dry Type Transformer

Cast Resin Dry Type Transformer

Standard Features:

  • Voltage: Up to 35KV
  • Rating: Up to 31.5MVA
  • BIL: Up to 200KV

Options:

  • Standard Design (HV/LV by resin cast)
  • VPI (Vacuum Pressure Impregnation)
  • Rectifier with dual secondary
  • Amorphous Core

Our Product Advantages:

  • Low Partial Discharge ≤ 5Pc
  • Low Working Temperature to -25℃
  • E3, C3 and F1 Class certification
  • Low Temperature Rise (90K-125K)
  • High Impulse Voltage & Short Circuit Withstand
Transformer Production Detail 1
Transformer Production Detail 2

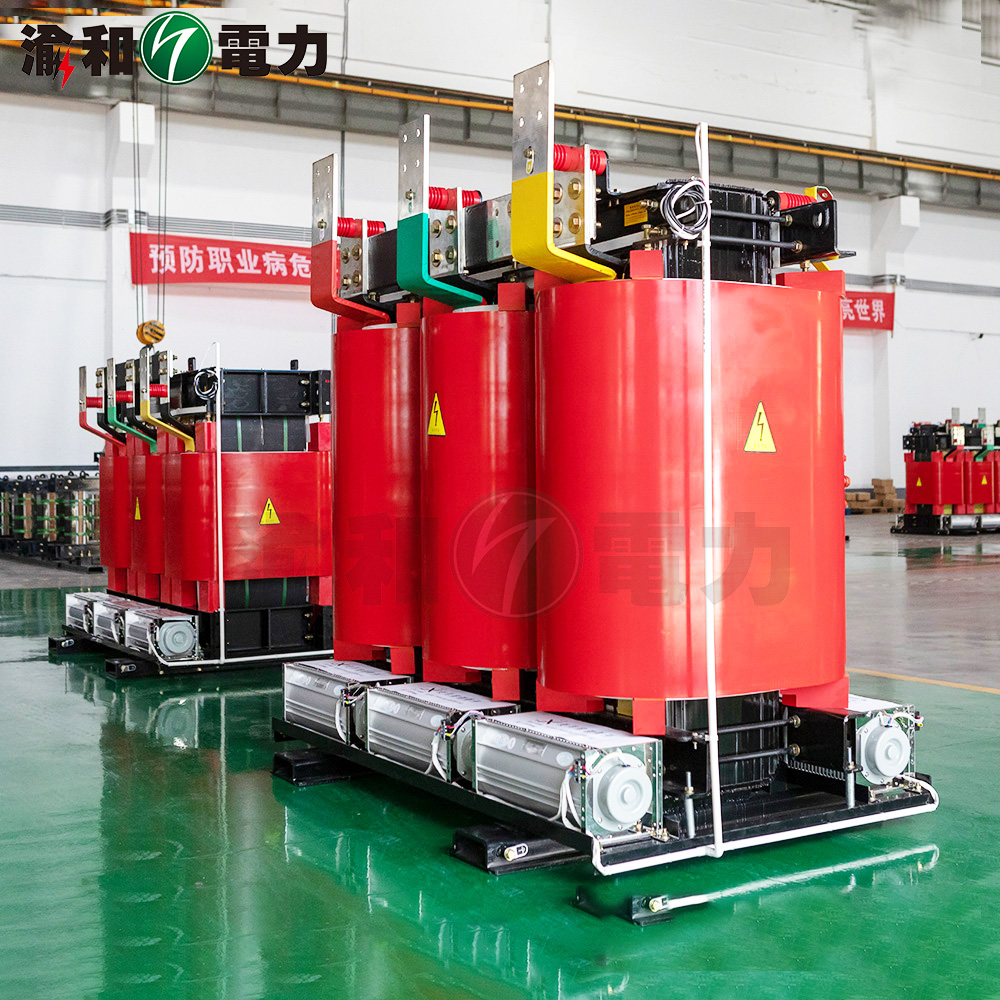

Transformer Production Detail 3

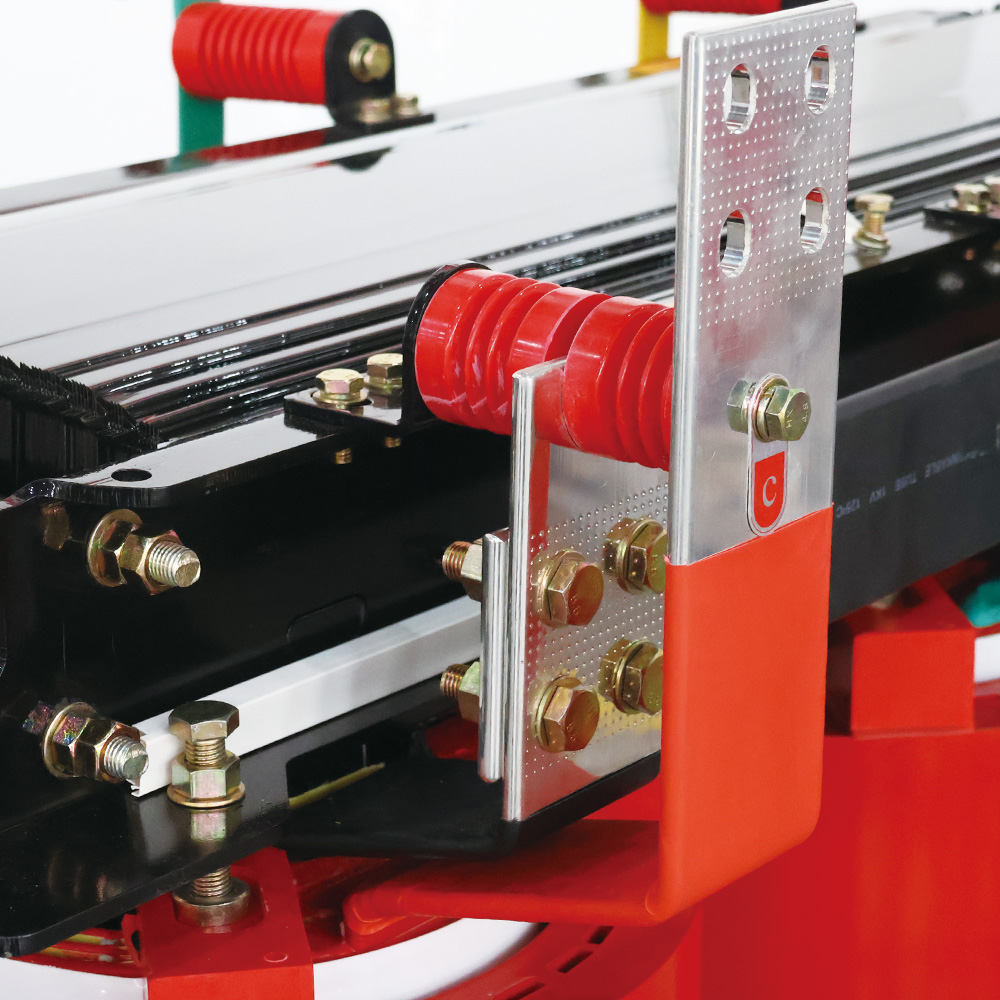

Industrial Grid Transformer 1

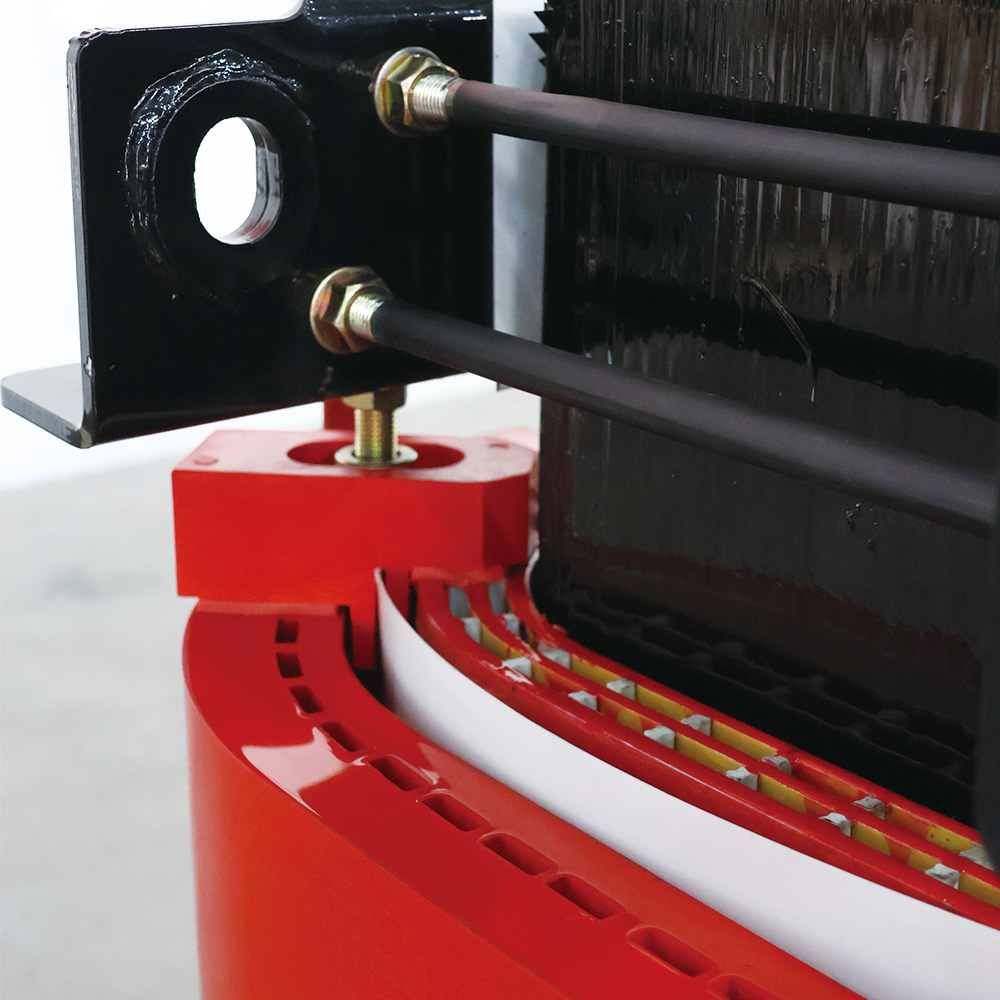

Industrial Grid Transformer 2

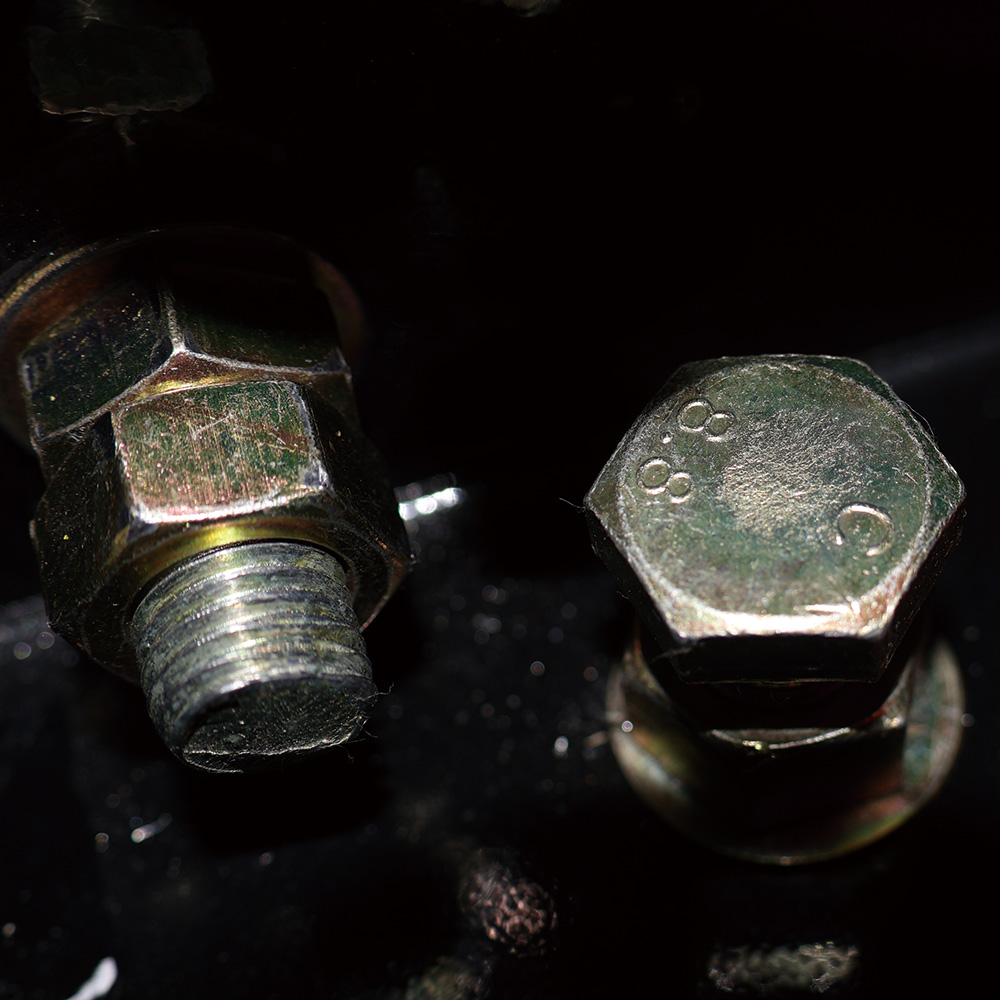

Industrial Grid Transformer 3
Transformer Core Assembly

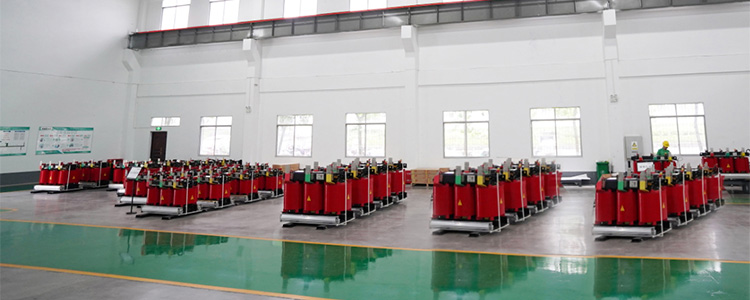

Transformer Coil Winding

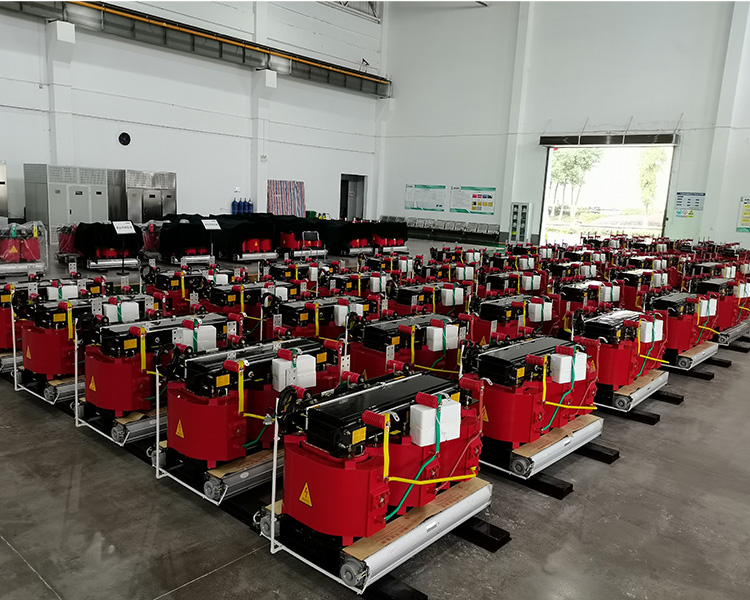

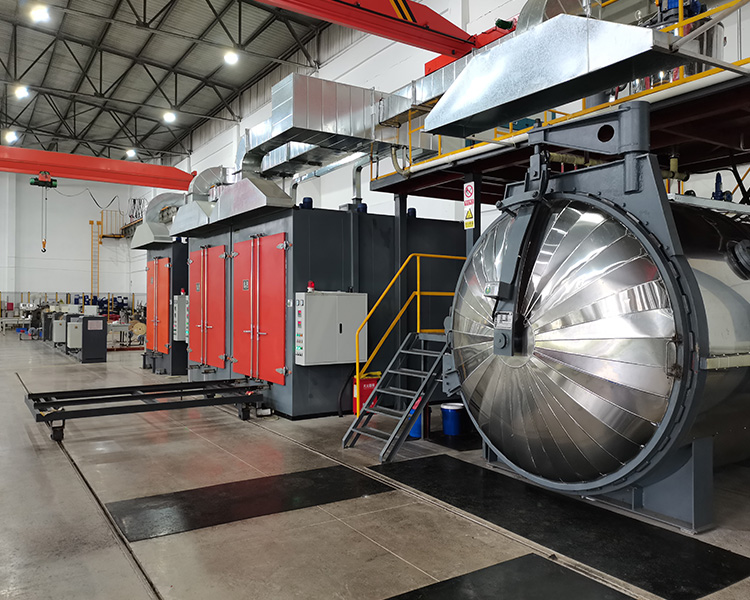

Factory Product Line 1
Factory Product Line 2

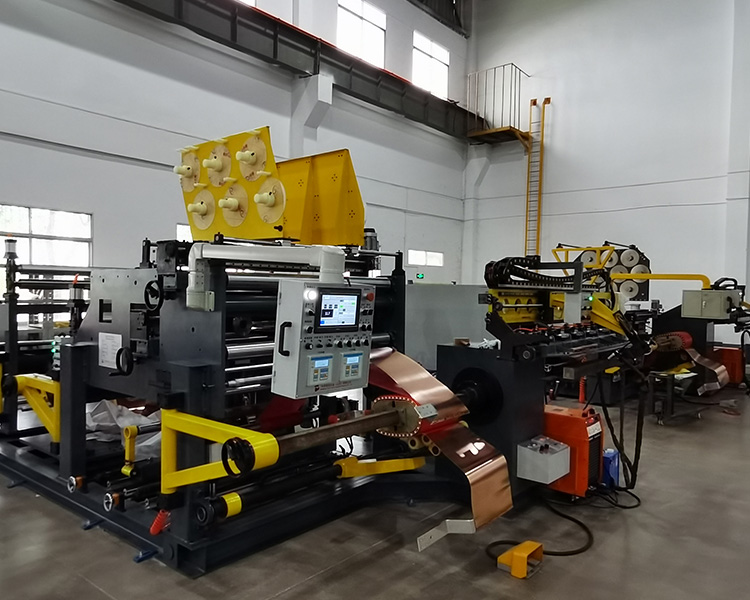

Factory Product Line 3

Compliance & Quality

Our Certificates

Corporate Quality Certification
Safety Certification Document
Environmental Management Certification
Product Standards Compliance Certification
Technical Patent 1
Technical Patent 2
Technical Patent 3
Technical Patent 4
Production Process Standard Certification

Common Questions

Frequently Asked Questions

Are you a manufacturer or trading company?
We are a leading and professional manufacturer of box-type substations, dry-type transformers, oil-immersed transformers, and package compact substations since 2010.
Can your products be customized?
Yes. Considering differences in voltage, frequency, and other specifications of transformer products across different countries and regions, we customize our products according to your specific requirements.
When can I get the price?
We typically provide a quotation within 24 hours after receiving your detailed inquiry.
What about the lead or shipping time?
The lead time depends on the ordered quantity, generally within 30 days upon receipt of the advance payment.
What are your preferred terms of payment?
Our preferred payment terms are T/T (Telegraphic Transfer) and L/C (Letter of Credit).
Why should we buy from you rather than other suppliers?
With over 10 years of specialization in transformer manufacturing, we have our own R&D and design teams. We hold over 10 patent certificates alongside ISO-9001, ISO-14001, and ISO-45001 standards. We guarantee high quality, fast delivery, reliable after-sales service, and factory-direct pricing.
Quality Control Testing Line

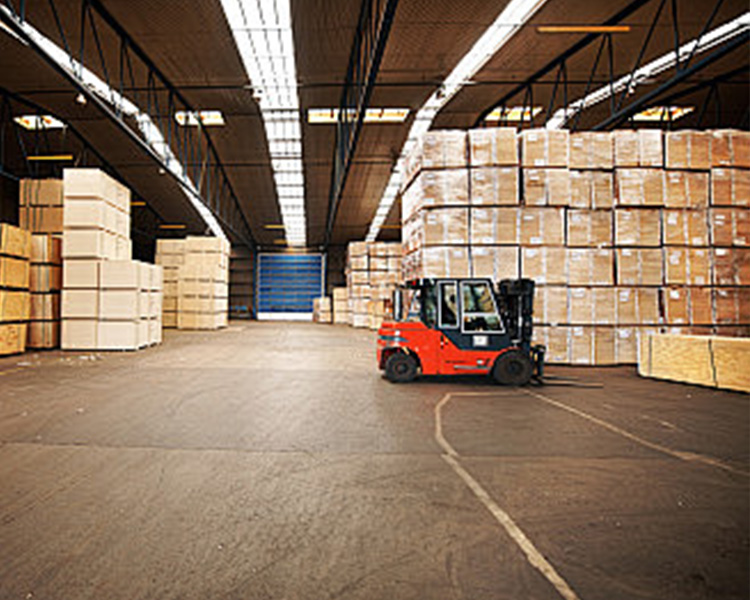

Warehouse Storage
