Immediate grid-ready step-up configurations designed for modern high-performance wind farms.
Understanding the transition dynamics, spatial constraints, and high-voltage grid requirements in Germany's capital region.
Germany’s aggressive energy transition, the Energiewende, sets strict regulatory and technological demands on grid integration. In Berlin and the surrounding state of Brandenburg, onshore wind energy plays a key role in decarbonizing metropolitan municipal networks. Since Brandenburg acts as a clean energy engine feeding power into Berlin's distribution system operators (DSOs) and the 50Hertz transmission system, the demand for high-reliability wind power step-up substations is higher than ever.
Transitioning from low-voltage generator interfaces to medium-voltage (typically 10kV to 35kV) or high-voltage (110kV and above) collector systems requires ruggedized electrical engineering. Standard off-the-shelf step-up equipment often falls short when integrated into the local distribution grid due to specific German grid codes (VDE-AR-N 4110 and 4120). Factors such as harmonic filtering, dynamic reactive power support (FRT), and structural containment regulations inside water protection zones are paramount.
Whether repowering legacy wind installations in Brandenburg or setting up modern offshore systems that feed directly into the coastal transit nodes, choosing a supplier that understands these deep engineering details is critical for minimizing capital expense (CAPEX) and ensuring rapid commissioning authorization.
Full engineering alignment with VDE-AR-N 4110 / 4120 protocols, specifying low-voltage ride-through (LVRT) and precise reactive power regulation parameters.
Containment designs prioritizing water conservation laws (WGK classes in Germany), using eco-friendly synthetic esters and dry-type hermetically sealed castings.

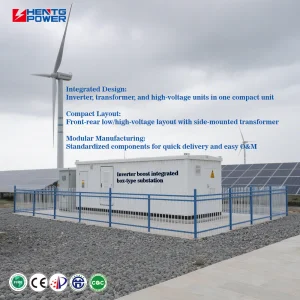

Factory-assembled containerized substation units offering rapid deployable setups, minimizing site construction risks and installation time.
Zhejiang Zeno Electric Co., Ltd. is a national high-tech enterprise located in Ningbo, with a registered capital of 52 million yuan. The company integrates research and development (R&D), manufacturing, sales, and service of advanced power equipment and energy systems.
Rooted in Ningbo and supported by a strong engineering and technical team, Zeno Electric has steadily expanded its business across China and international markets. Through continuous innovation and quality-driven development, the company has become a trusted provider in the power and energy industry, with growing influence in both utility and industrial sectors.
With a focus on sustainable development and smart energy transformation, we are committed to delivering safe, efficient, and intelligent power solutions that support the global transition toward cleaner and more digitalized energy systems.
We specialize in power equipment and integrated energy system solutions. Our product portfolio covers a wide range of advanced technologies, including:
In addition, we undertake turnkey power engineering projects up to 220kV, providing end-to-end services that include system planning, engineering design, equipment manufacturing, installation, commissioning, and long-term maintenance.
Take a virtual walk through our advanced production line in Ningbo, designed to meet rigorous German and international quality benchmarks.
How local engineering flexibility coupled with global cost optimization yields superior step-up substation performance.
Procuring heavy electrical infrastructure from Zhejiang Zeno Electric Co., Ltd. allows European EPC contractors and utilities serving the Berlin area to bypass two of the biggest roadblocks in today's market: excessive lead times and high customization premiums. While European domestic switchgear OEMs often quote lead times exceeding 18 to 24 months, Zeno Electric utilizes the robust industrial ecosystem of Ningbo, China to deliver fully customized, VDE-compliant units in a fraction of that time.
Our raw material sourcing, automated copper winding, vacuum casting, and state-of-the-art metal fabrication processes are housed in-house. This centralized control guarantees component consistency and decreases structural costs. Additionally, we integrate industry-standard Western components (such as Siemens SIPROTEC protection relays, MR tap changers, and Schneider MV breakers) into our switchgear configurations. This hybrid engineering approach ensures that your maintenance crews encounter familiar systems and standard interfaces upon installation, satisfying local German TSOs and DSOs.
Our customized packaging options include shipping in CSC-certified high-cube sea containers, which transforms our prefabricated substations into plug-and-play modules directly deployable upon port arrival at Hamburg or Rostock, followed by short inland transit to Berlin.
Engineered for long-term operational resilience and global utility approval.
Meeting requirements for connecting renewable generation plants to medium and high voltage networks.
Connecting a wind farm in Brandenburg to the Berlin metropolitan grid requires compliance with the VDE-AR-N 4110 (technical connection rules for medium-voltage systems) or VDE-AR-N 4120 (technical connection rules for high-voltage systems). These regulations require rigorous testing of all components within the step-up substation.
Key technical compliance aspects include:

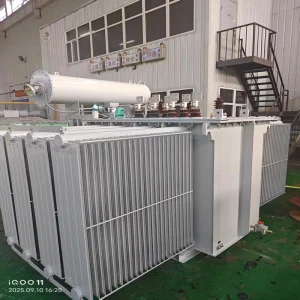

The substation's primary step-up transformers must be engineered to withstand transient short-circuit currents and facilitate rapid voltage recovery during system faults. Our transformers undergo type testing to ensure mechanical stability under short-circuit stresses, avoiding grid decoupling during local microgrid disturbances.
In accordance with the German Renewable Energy Sources Act (EEG), remote control interfaces must be integrated within the medium-voltage switchgear. Zeno substations feature RTU-based control cabinets compatible with telecontrol protocols (IEC 60870-5-104 or Modbus TCP), enabling local DSOs to throttle feed-in output during high-wind congestion events.

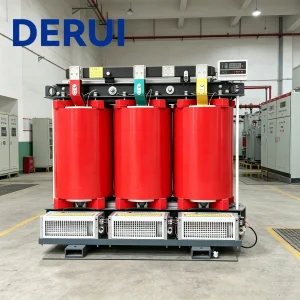

Urban and semi-urban wind projects face strict sound-pressure limits under the TA Lärm guidelines. Our substation designs integrate low-vibration cores and sound-dampening metal enclosures. For installation in water protection zones around Berlin, we offer Hermetically Sealed Oil Transformers utilizing biodegradable ester fluids or SCB series cast-resin dry-type alternatives.
Optimized configurations emphasizing long-term ecological balance and structural weatherproofing.
Deep engineering insights regarding design parameters, logistics, and localized operational considerations.
Our step-up substations are engineered in accordance with VDE-AR-N 4110 (medium voltage connection regulations) and VDE-AR-N 4120 (high voltage connection regulations). We source components certified by recognized bodies such as TÜV and CE to guarantee safety and performance.
Yes, we offer fully flexible design parameters. While we manufacture the structural housing and high-efficiency transformers, the internal low-voltage/medium-voltage switchgear can be outfitted with brands of your choice, such as Siemens SIPROTEC protection devices or ABB vacuum breakers, to match your current system setup.
For oil-immersed systems, our prefabricated concrete or metal enclosures are built with built-in oil containment pans (oil sumps) designed to hold 100% of the transformer's fluid volume, preventing soil and groundwater contamination in compliance with the German Water Resources Act (WHG).
Manufacturing of customized substations typically takes 8 to 12 weeks depending on complexity. Sea transport from the Port of Ningbo to the Port of Hamburg takes approximately 30 to 35 days, followed by 2 to 3 days of heavy-load road transport directly to your project site in Berlin or Brandenburg.
Yes, our control compartments are equipped with digital RTUs supporting IEC 60870-5-104 and IEC 61850 protocol standards. This allows telemetry, diagnostic monitoring, and active power limitation signals to communicate with regional grid operators.
Fully customizable power distribution, grid-connection, and prefabricated solutions engineered to perform under demanding conditions.
Speak directly with our engineering department in Ningbo. We provide custom CAD configurations, single-line diagrams, and detailed pricing proposals aligned with German VDE connection codes.
